TE5塑膠殼快斷微型保險絲

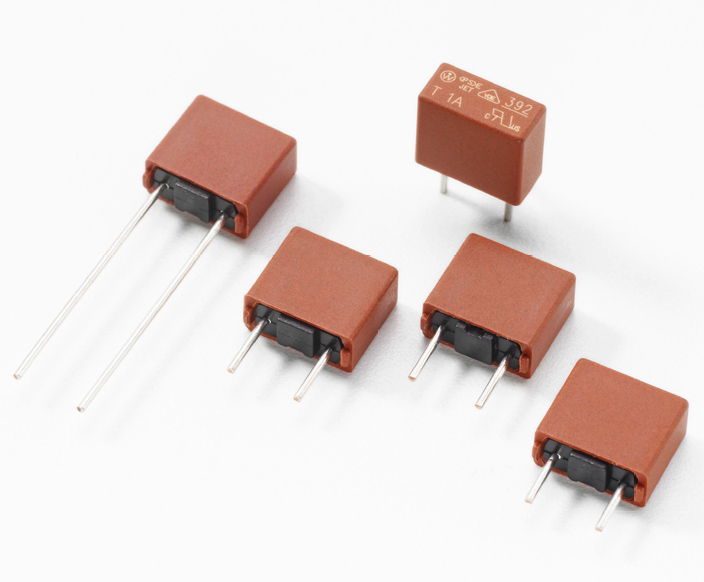

Physical map：

Description
TE5®, fast-acting type, 125V/250V rated fuses, designed in accordance to UL 248-14.
Features
? Lead-free ? Reduced PCB space requirements ? Direct solderable or plug-in versions ? Internationally approved
? Low internal resistance ? Shock safe casing ? Vibration resistant ? Halogen Free ? Available from 50mA to 6.3A
Applications
? Battery Charges ? Consumer Electronics ? Power supplies ? Industrial Controllers

% of Ampere Rating	Opening Time
135%	1 Hour, Min.
200%	120 s, Max.

Electrical Characteristic Specifications by Item

Amp Code	Rated Current	Voltage Rating	Breaking Capacity	Voltage Drop 1.0×IN max. (mV)	Power Dissipation 1.0×IN max. (mW)	Melting Integral 10×IN max. (A2s)	Agency Approvals
Amp Code	Rated Current	Voltage Rating	Breaking Capacity	Voltage Drop 1.0×IN max. (mV)	Power Dissipation 1.0×IN max. (mW)	Melting Integral 10×IN max. (A2s)	UL	CSA	PSE
0050	50mA	125V/250V	100A / 250 VAC 50-60 Hz cos ? = 1.0	1600	85	0.0001	x	x
0063	63mA	125V/250V		1300	85	0.00013	x	x
0080	80mA	125V/250V		1200	100	0.0002	x	x
0100	100mA	125V/250V		1100	110	0.0013	x	x
0125	125mA	125V/250V		1350	160	0.0019	x	x
0160	160mA	125V/250V		1000	150	0.0037	x	x
0200	200mA	125V/250V		950	210	0.0075	x	x
0250	250mA	125V/250V		900	225	0.013	x	x
0315	315mA	125V/250V		800	255	0.026	x	x
0400	400mA	125V/250V		230	95	0.015	x	x
0500	500mA	125V/250V		220	110	0.025	x	x
0630	630mA	125V/250V		210	135	0.045	x	x
0800	800mA	125V/250V		200	160	0.068	x	x
1100	1.00A	125V/250V		190	190	0.13	x	x	x
1125	1.25A	125V/250V		180	225	0.2	x	x	x
1160	1.60A	125V/250V		170	275	0.39	x	x	x
1200	2.00A	125V/250V		160	450	0.53	x	x	x
1250	2.50A	125V/250V		150	375	1.1	x	x	x
1315	3.15A	125V/250V		140	445	1.9	x	x	x
1400	4.00A	125V/250V		130	520	3.2	x	x	x
1500	5.00A	125V/250V		120	600	6.1	x	x	x
1630	6.30A	125V/250V		115	850	9.7	x	x

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

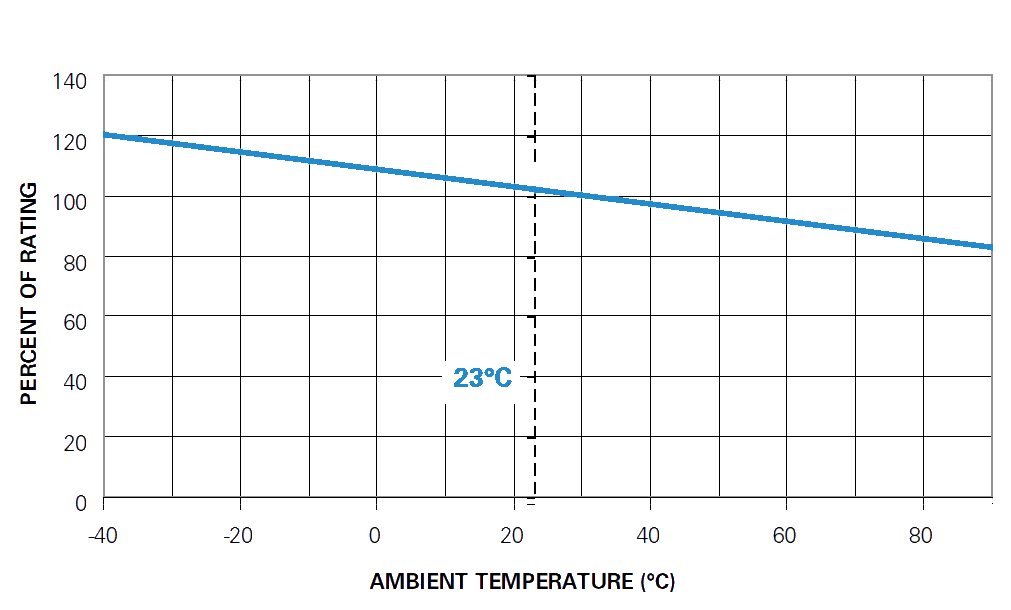

Temperature Derating Curve

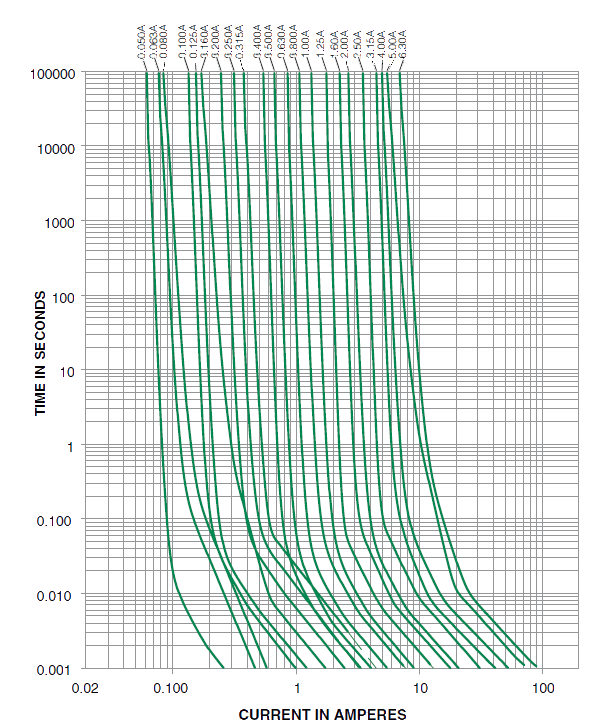

Average Time Current Curves

Product Characteristics

Materials	Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated
Lead Pull Strength	10 N (IEC 60068-2-21)
Solderability	260oC, ≤ 3 sec. (Wave) 350oC, ≤ 3 sec. (Soldering iron)
Soldering Heat Resistance	260oC, 10 sec. (IEC 60068-2-20) 350oC, ≤ 3 sec. (Soldering iron)
Operating Temperature	–40oC to +85oC (consider de-rating)
Climatic Category	–40oC to +85oC/21 days (EN 60068-1, -2-1, -2-2, -2-78)
Stock Condition	+10 oC to +60 oC Relative humidity ≤ 75% yearly average, without dew, maximum value for 30 days - 95%
Vibration Resistance	24 cycles at 15 min. each(EN 60068-2-6)10–60 Hz at 0.75 mm amplitude 60–2000 Hz at 10 g acceleration

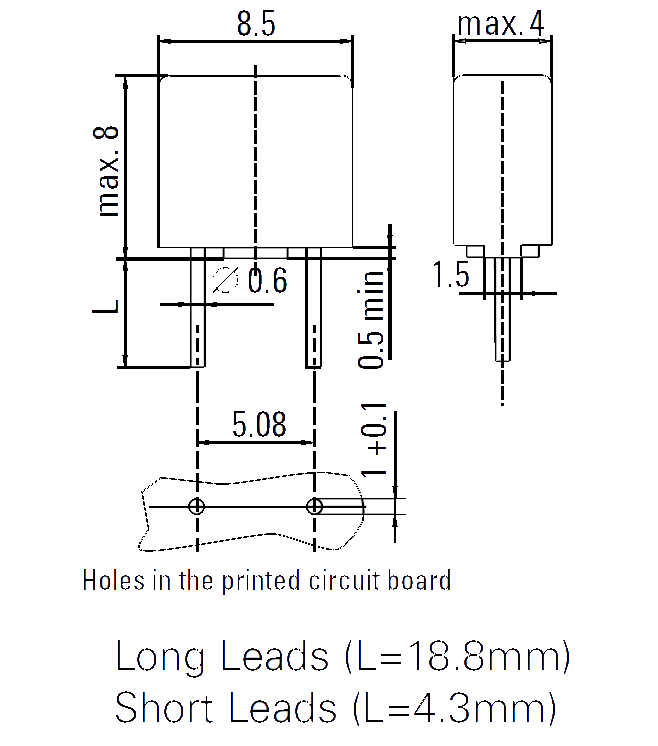

Dimensions

Packaging

packaging Option	packaging Specification	Quantity
12mm Tape and Reel	N/A	1400
