3.6*10mm 玻璃管快斷保險絲-----UL CSA CQC

1.規格型號和安規認證
MODEL NUMBER AND SAFETY CERTIFICATION

品名規格：系列號+額定電流+額定電壓+認證符號

   Model  Number:  Part  Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
3GFU     1A      250V                      1)系列號  Part  Number
                                                        2)額定電流  Rated  Current
1）        2）     3）                        3)額定電壓  Rated  Voltage
1-2 額定電流和額定電壓
Rated Current  And  Voltage
額定電流： 100mA~10A
Rated Current: 100mA~10A
額定電壓;125V/250V AC
Rated  Voltage:125V/250V AC
1-3標示Marking
保險絲上需有下列標示
The fuse shall have the following marking:
規格：特性符號+額定電流+額定電壓
Specification:Characteristic  Symbol+Rated Voltage
   100mA~800mA : _mA250V    1A~10A:_A250V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
100mA~10A:

注意：對標示字樣大小沒有規定
Note:Size of the markings have not be specified.

2.適用範圍
SCOPE
適用於一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

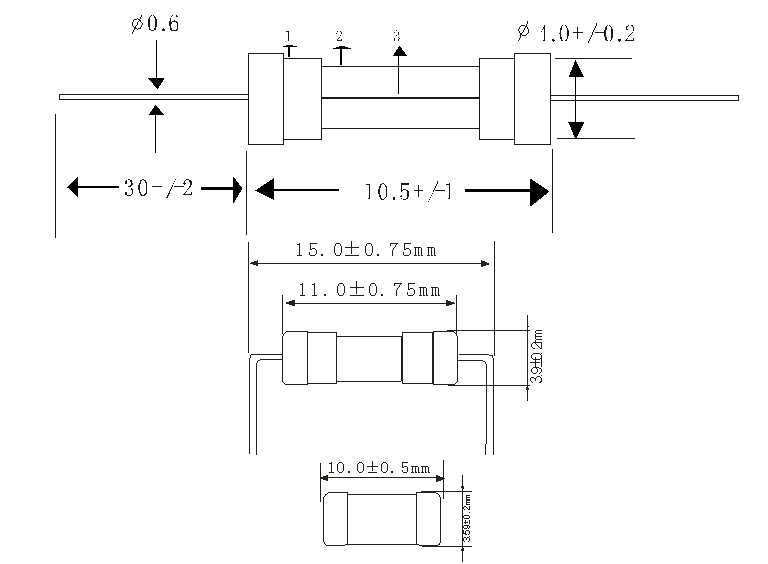

3-1 工程圖（單位：mm）
Outline Drawing and Dimensions(Unit:mm)

3-2結構
Structure

編號 No.	元件 Component	材質 Material	數量 Quantity
(1)	熔絲 Wire	合金 Alloy	1
(2)	銅帽 Cap	黃銅鍍鎳 Brass with mickel plated	2
(3)	本體 Body	玻璃管 GLASS Tube	1
(4)	引線 Lead	鍍錫銅線 Tinned Copper wire	2

4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀：不應有破碎、明顯的汙斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀：帶腳的保險絲
Configuration:Axial Leaded Fuse.

5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力，持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性：
Pre-Arcing Time/Current Characteristic

a、Breaking capacity（分?jǐn)嗄芰Γ?Time Lag and Fast Acting)

50A

125V/250V

b、Electrical characteristics
Fast Acting

Rated current	% of Ampere	Opening Rating Time
100mA~ 10A	100%	200%
100mA~ 10A	4 hours, Minimum	5 Sec, Max.

c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
d、ORDERING INFORMATION:

Catalog Number	Ampere Rating	Voltage Rating	Nominal Resistance Cold mOhms	Nominal Melting i2tA2Sec.	Agency Approvals
Catalog Number	Ampere Rating	Voltage Rating	Nominal Resistance Cold mOhms	Nominal Melting i2tA2Sec.	UL	CSA		CQC
3GFU-.100	.100	125/250V	4.8250	0.00194	×		×		×
3GFU-.125	.125	125/250V	3.8620	0.00289	×		×		×
3GFU-.200	.200	125/250V	1.7302	0.0114	×		×		×
3GFU-.250	.250	125/250V	1.6120	0.0225	×		×		×
3GFU-.300	.300	125/250V	0.9250	0.0295	×		×		×
3GFU-.400	.400	125/250V	0.5840	0.0695	×		×		×
3GFU-.500	.500	125/250V	0.2322	0.128	×		×		×
3GFU-.600	.600	125/250V	0.1765	0.218	×		×		×
3GFU-.750	.750	125/250V	0.1310	0.254	×		×		×
3GFU-.800	.800	125/250V	0.1215	0.304	×		×		×
3GFU-001.	1.00	125/250V	0.1056	0.508	×		×		×
3GFU-01.5	1.50	125/250V	0.0595	0.884	×		×		×
3GFU-01.6	1.60	125/250V	0.0565	0.965	×		×		×
3GFU-002.	2.00	125/250V	0.0378	2.27	×		×		×
3GFU-02.5	2.50	125/250V	0.0342	3.73	×		×		×
3GFU-3.15	3.15	125/250V	0.0253	5.95	×		×		×
3GFU-004.	4.00	125/250V	0.0174	8.86	×		×		×
3GFU-04.5	4.50	125/250V	0.0170	9.77	×		×		×
3GFU-005.	5.00	125/250V	0.0145	15.6	×		×		×
3GFU-006.	6.00	125/250V	0.0132	18.0	×		×		×
3GFU-06.3	6.30	125/250V	0.0120	19.3	×		×		×
3GFU-06.5	6.50	125/250V	0.0118	21.9	×		×		×
3GFU-007.	7.00	125/250V	0.0111	25.8	×		×		×
3GFU-008.	8.00	125/250V	0.0088	33.2	×		×		×
3GFU-010.	10.0	125/250V	0.0056	88.5	×		×		×

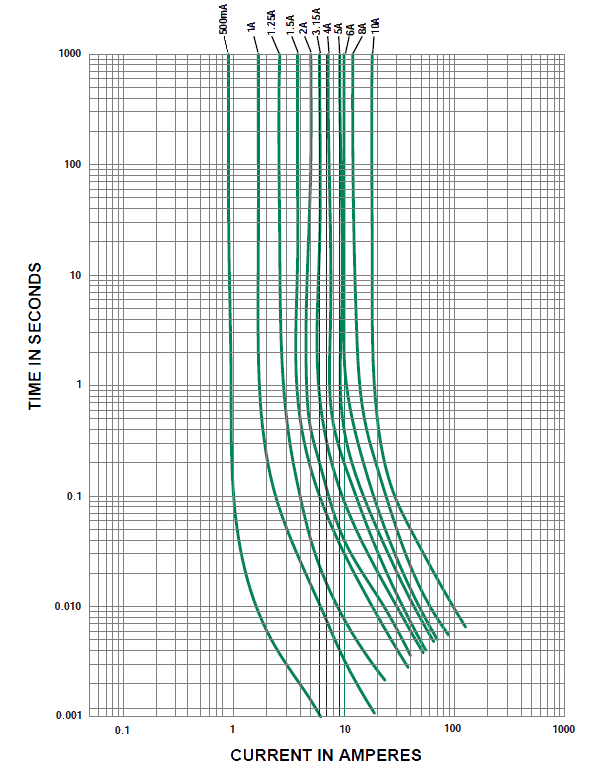

Average Time Current Curves

7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度範圍：-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度：+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下，相對濕度為95%下最多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.

8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度：260±5℃
Soldering Temperature:260±5℃
焊接時間：4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度：350±5℃
Soldering Temperature: 350±5℃
焊接時間：3 Sec. Max.
Soldering Time: 3 Sec. Max.

9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管，烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度：不大於150℃ 烘烤時間：50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
